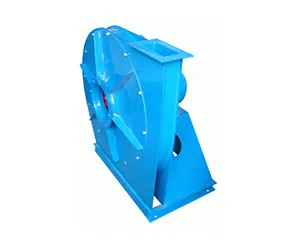

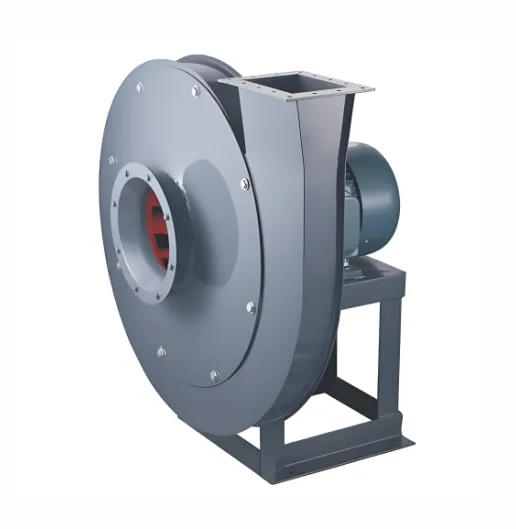

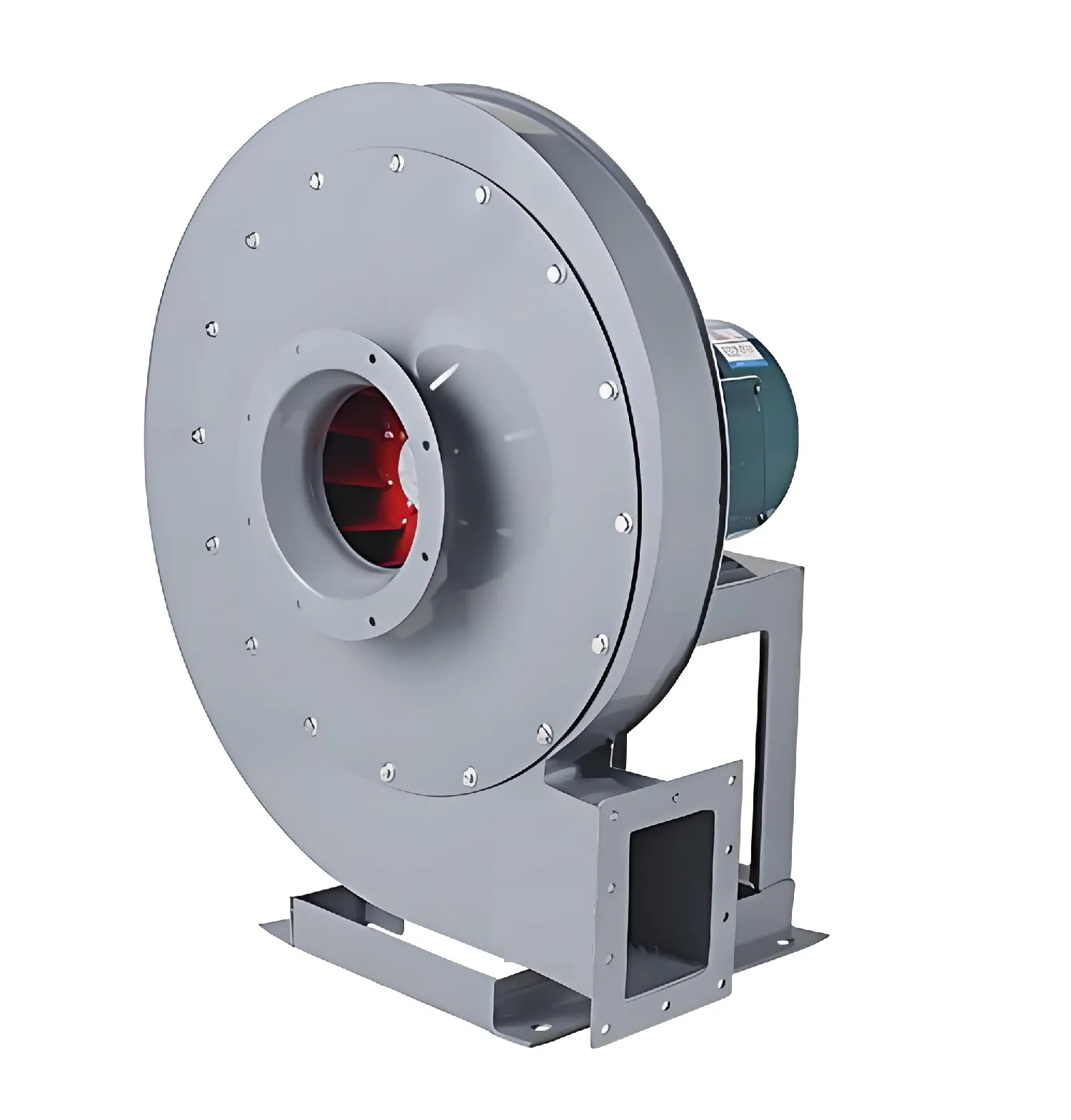

YYHP Centrifugal Fan for High-Pressure Industrial Ventilation and Material Conveying

High-Pressure Industrial Ventilation & Material Conveying – Designed for forge furnaces, glass manufacturing, electric and ceramic furnaces, storage battery and radio equipment production, as well as grain, feed, and mineral powder handling.

Versatile Gas Handling – Suitable for air and non-flammable, non-corrosive gases with ≤150 mg/m³ particulate concentration; optional 316 stainless steel for corrosive or high-temperature environments (up to 500 °C).

Customizable Configuration – Single-suction design with right/left rotation options, discharge angles of 0°–225°, and multiple drive systems (Type A, Type D) to match operational needs.

Optimized Impeller Performance – Forward-curved blade design with bladeless diffuser, ISO G2.5 balance certification for high efficiency, low noise, and smooth operation.

Robust Casing Structure – High-quality steel or stainless steel construction with monolithic spiral casing and integrated sound-dampening throat design for long service life.

Flexible Model Range – Covers sizes No. 3.6–16 to meet different air volume and pressure requirements.

Customization Options for YYMP Centrifugal Fans

1.Designed based on the customer-required air volume and pressure.
2. Epoxy primer + topcoat spray coating process.
3. Adjustable air outlet angle according to customer needs.
4. Fan model/size selected based on operational conditions.
5. Material selection tailored to the operating environment.
