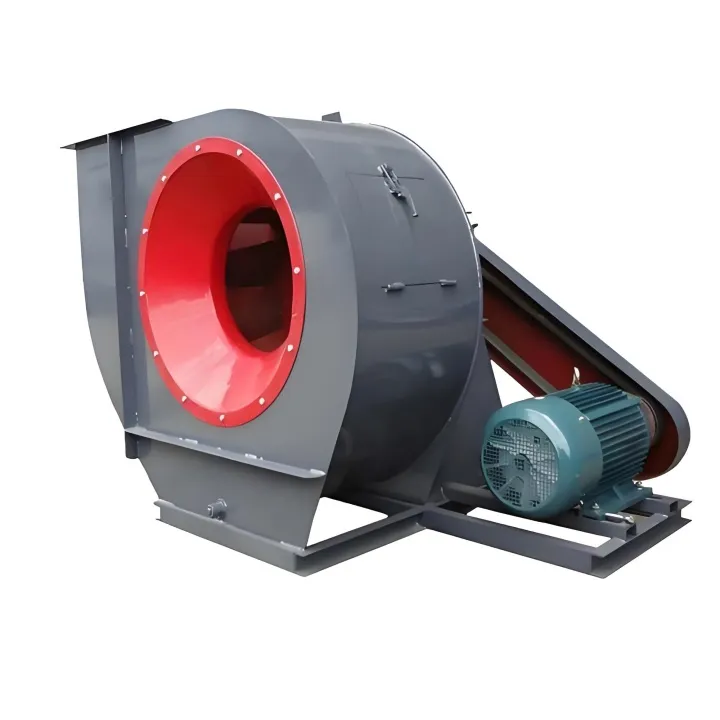

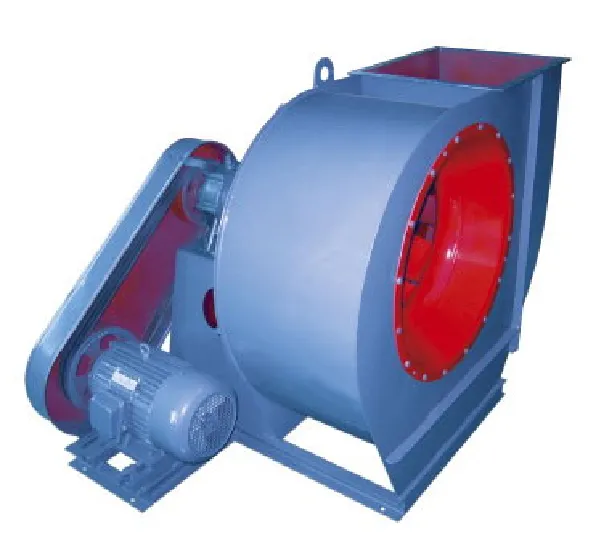

YYLA Centrifugal Fan for Industrial Plants and Large Building Ventilation
The YYLA centrifugal fan is designed for general industrial plants and large buildings, providing efficient indoor ventilation and air replacement. Suitable for both air supply and exhaust, it handles non-flammable, non-corrosive, and harmless gases up to 80°C, without viscous substances and with dust/hard particle content below 150 mg/m³.
One-Stop Ventilation Solution
1. Customizable Design: Tailored air volume, pressure, and outlet angle to meet your specific operational needs. 2. Durable Construction: Steel impeller and scroll casing built for high efficiency, low vibration, and long service life. 3. Flexible Configuration: Multiple drive types and outlet positions to suit various installation requirements. 4 . Technical Support: Expert guidance on model selection, installation, and maintenance to optimize fan performance.
Product Detail
Features of YYLA Centrifugal Fan
High-Efficiency Impeller
12 backward-curved aerofoil steel blades, dynamically balanced for stable airflow and minimal vibration.
Robust Scroll Casing
Scroll-shaped steel casing:
Models 2.8–12.5: Integral (non-disassemblable) casing
Models 16–20: Two-piece split casing for easier maintenance
Streamlined Inlet Volute
Curved axial cross-section minimizes airflow resistance and ensures smooth air intake.
Reliable Transmission System
Includes main shaft, bearings, and coupling/sheave for smooth power transfer and stable operation.
Configuration Details
1.Rotation Direction
Right-hand (clockwise) or left-hand (counter-clockwise) when viewed from the motor side.
2.Outlet Position
Adjustable in specific models, with factory-fixed or user-adjustable options ranging from 0° to 225°
3.Drive Types
Configurations A, B, C, D depending on model size.
Customization Options
1.Epoxy primer + topcoat spray coating for corrosion resistance.
2.Adjustable air outlet angles based on installation needs.
3.Model and material selection tailored to operating environment and conditions.
Why Choose Us
Yueyu, as a centrifugal fan manufacturer, ensures strict quality and excellent service. With advanced production and 17 years of experience, we deliver efficient and reliable centrifugal fans tailored to your specific needs.
High Efficiency
Stable & Durable
Quality Materials
Custom Solution
